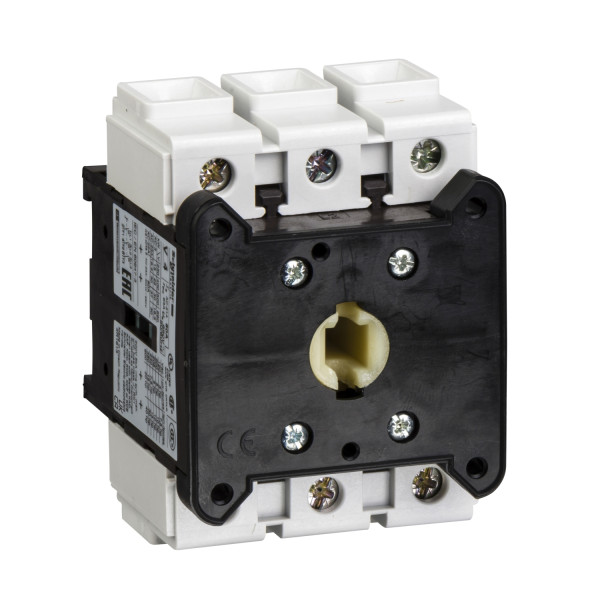

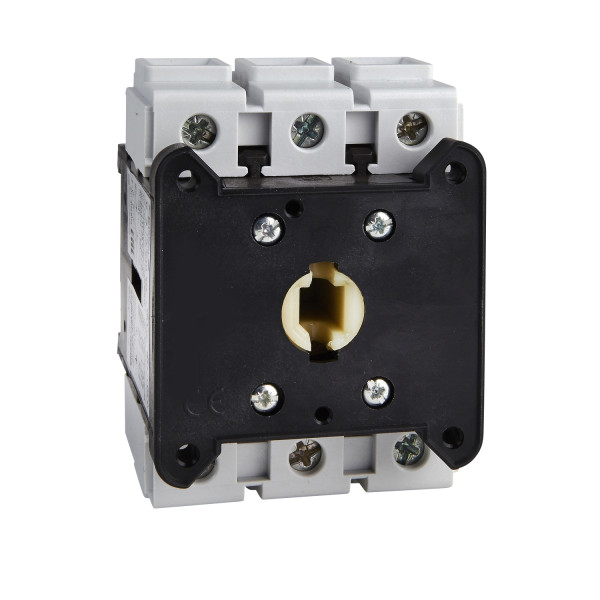

bloc de base pour interrupteursectionneur Vario 3P 63 A
bloc de base pour interrupteursectionneur Vario 3P 63 A
bloc de base pour interrupteursectionneur Vario 3P 63 A

Photo(s) non contractuelle(s)

bloc de base pour interrupteursectionneur Vario 3P 63 A

51.10 € HT 61.32 € TTC

Marque Schneider Electric

Référence V3

EAN 3389110551716

Commande min. 1

Non géré en stock - A commander chez notre fournisseur

Expédition sous 8-13 jours Délai estimatif

Schneider Electric

SCHKZ74

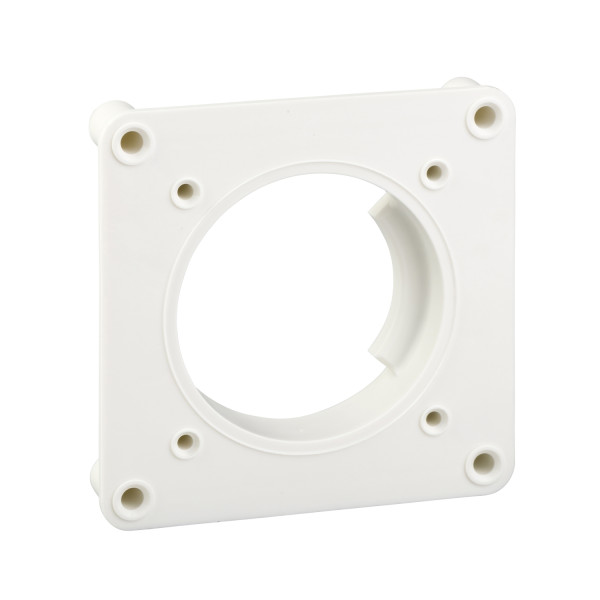

Schneider Electric Verrouillage de Porte Jeu de 5

Non géré en stock
A commander

8.68 € HT 10.42 € TTC

Soit un total de 43.40 € HT Soit un total de 52.10 € TTC

Schneider Electric

SCHKZ81

Schneider Electric Contreplaque 60 X 60 Et 90 X 90 Mm pour Montage de Poignée sur Porte Jeu de 5

Offre limitée
1 produit(s) disponible(s)

16.01 € HT 19.21 € TTC

Schneider Electric

SCHVBFXGE2

COF VIDE POUR INT PAL 63A

Non géré en stock
A commander

115.76 € HT 138.91 € TTC

Schneider Electric

SCHVCFXGE2

COF.VID INT PAL AR URG 63

Non géré en stock
A commander

89.40 € HT 107.28 € TTC

Schneider Electric

SCHVZ12

pôle neutre 80 A pour V3, V4

Non géré en stock
A commander

20.94 € HT 25.13 € TTC

Schneider Electric

SCHVZ15

barrette de terre 80 A pour V3, V4

Non géré en stock
A commander

18.86 € HT 22.63 € TTC

Schneider Electric

SCHVZ18

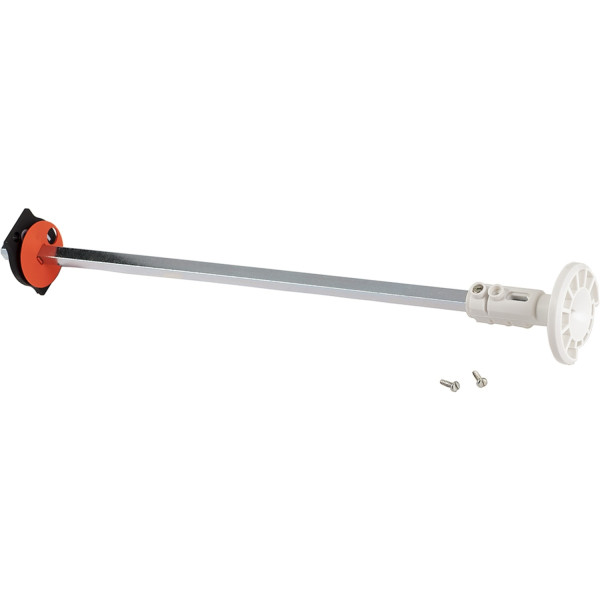

RALLONGE D'AXE 300/350 MM

Non géré en stock
A commander

18.95 € HT 22.74 € TTC

Schneider Electric

SCHVZ20

contacteur CONTACTS AUX. F plus F

Non géré en stock
A commander

14.65 € HT 17.58 € TTC

Schneider Electric

SCHVZ3

pôle principal 63 A pour V3

Non géré en stock
A commander

18.86 € HT 22.63 € TTC

Schneider Electric

SCHVZ31

RALLONGE D'AXE 400/450 MM

Non géré en stock
A commander

21.80 € HT 26.16 € TTC

Schneider Electric

SCHVZ7

contacteur CONTACTS AUX. F plus 0

Non géré en stock
A commander

14.65 € HT 17.58 € TTC

Schneider Electric

SCHVZ9

CACHE-BORNES TRI INT 80A

Non géré en stock
A commander

3.96 € HT 4.75 € TTC

Description

Caractéristiques principales :
  • Gamme de produits : TeSys VARIO
  • Nom abrégé d'appareil : V
  • Type de produit ou de composant : Corps de l'interrupteur
  • Description des pôles : 3P
  • Type de réseau : AC / DC
  • [ith] courant thermique conventionnel : 63 A
  • Aptitude au sectionnement : Oui
Caractéristiques complémentaires :
  • Fréquence du réseau : 50/60 Hz
  • Support de montage : Porte de boîtier / Platine
  • [ue] tension assignée d'emploi : 690 V AC 50/60 Hz
  • [uimp] tension assignéede tenue aux chocs : 8 kV
  • [ithe] courant thermique d'emploi sous enveloppe : 50 A
  • [ie] courant assigné d'emploi : 10 A à 110 V L/R = 1 ms DC-2 2 / 10 A à 110 V L/R = 1 ms DC-3 2 / 10 A à 110 V L/R = 1 ms DC-4 2 / 10 A à 110 V L/R = 1 ms DC-5 2 / 10 A à 220 V L/R = 1 ms DC-2 3 / 10 A à 220 V L/R = 1 ms DC-3 3 / 10 A à 220 V L/R = 1 ms DC-4 3 / 10 A à 220 V L/R = 1 ms DC-5 3 / 20 A à 110 V L/R = 1 ms DC-1 1 / 20 A à 250 V L/R = 1 ms DC-1 2 / 25 A à 220 V L/R = 1 ms DC-1 2 / 25 A à 690 V AC-23A / 0,125 à 250 V L/R = 1 ms DC-2 2 / 0,125 à 250 V L/R = 1 ms DC-3 2 / 0,125 à 250 V L/R = 1 ms DC-4 2 / 0,125 à 250 V L/R = 1 ms DC-5 2 / 30 A à 220 V L/R = 1 ms DC-1 3 / 30 A à 250 V L/R = 1 ms DC-1 3 / 4 A à 220 V L/R = 1 ms DC-2 2 / 4 A à 220 V L/R = 1 ms DC-3 2 / 4 A à 220 V L/R = 1 ms DC-4 2 / 4 A à 220 V L/R = 1 ms DC-5 2 / 4 A à 250 V L/R = 1 ms DC-1 1 / 40 A à 415 V AC-23A / 40 A à 60 V L/R = 1 ms DC-1 1 / 40 A à 60 V L/R = 1 ms DC-2 1 / 40 A à 60 V L/R = 1 ms DC-3 1 / 40 A à 60 V L/R = 1 ms DC-4 1 / 40 A à 60 V L/R = 1 ms DC-5 1 / 44 A à 500 V AC-23A / 50 A à 110 V L/R = 1 ms DC-2 3 / 50 A à 110 V L/R = 1 ms DC-3 3 / 50 A à 110 V L/R = 1 ms DC-4 3 / 50 A à 110 V L/R = 1 ms DC-5 3 / 0,25 à 110 V L/R = 1 ms DC-2 1 / 0,25 à 110 V L/R = 1 ms DC-3 1 / 0,25 à 110 V L/R = 1 ms DC-4 1 / 0,25 à 110 V L/R = 1 ms DC-5 1 / 0,25 à 220 V L/R = 1 ms DC-1 1 / 63 A à 110 V L/R = 1 ms DC-1 2 / 63 A à 110 V L/R = 1 ms DC-1 3 / 63 A à 230...690 V AC-21A / 63 A à 230...690 V AC-22A / 63 A à 24 V L/R = 1 ms DC-1 1 / 63 A à 24 V L/R = 1 ms DC-1 2 / 63 A à 24 V L/R = 1 ms DC-1 3 / 63 A à 24 V L/R = 1 ms DC-2 1 / 63 A à 24 V L/R = 1 ms DC-2 2 / 63 A à 24 V L/R = 1 ms DC-2 3 / 63 A à 24 V L/R = 1 ms DC-3 1 / 63 A à 24 V L/R = 1 ms DC-3 2 / 63 A à 24 V L/R = 1 ms DC-3 3 / 63 A à 24 V L/R = 1 ms DC-4 1 / 63 A à 24 V L/R = 1 ms DC-4 2 / 63 A à 24 V L/R = 1 ms DC-4 3 / 63 A à 24 V L/R = 1 ms DC-5 1 / 63 A à 24 V L/R = 1 ms DC-5 2 / 63 A à 24 V L/R = 1 ms DC-5 3 / 63 A à 48 V L/R = 1 ms DC-1 1 / 63 A à 48 V L/R = 1 ms DC-1 2 / 63 A à 48 V L/R = 1 ms DC-1 3 / 63 A à 48 V L/R = 1 ms DC-2 1 / 63 A à 48 V L/R = 1 ms DC-2 2 / 63 A à 48 V L/R = 1 ms DC-2 3 / 63 A à 48 V L/R = 1 ms DC-3 1 / 63 A à 48 V L/R = 1 ms DC-3 2 / 63 A à 48 V L/R = 1 ms DC-3 3 / 63 A à 48 V L/R = 1 ms DC-4 1 / 63 A à 48 V L/R = 1 ms DC-4 2 / 63 A à 48 V L/R = 1 ms DC-4 3 / 63 A à 48 V L/R = 1 ms DC-5 1 / 63 A à 48 V L/R = 1 ms DC-5 2 / 63 A à 48 V L/R = 1 ms DC-5 3 / 63 A à 60 V L/R = 1 ms DC-1 2 / 63 A à 60 V L/R = 1 ms DC-1 3 / 63 A à 60 V L/R = 1 ms DC-2 2 / 63 A à 60 V L/R = 1 ms DC-2 3 / 63 A à 60 V L/R = 1 ms DC-3 2 / 63 A à 60 V L/R = 1 ms DC-3 3 / 63 A à 60 V L/R = 1 ms DC-4 2 / 63 A à 60 V L/R = 1 ms DC-4 3 / 63 A à 60 V L/R = 1 ms DC-5 2 / 63 A à 60 V L/R = 1 ms DC-5 3 / 8 A à 250 V L/R = 1 ms DC-2 3 / 8 A à 250 V L/R = 1 ms DC-3 3 / 8 A à 250 V L/R = 1 ms DC-4 3 / 8 A à 250 V L/R = 1 ms DC-5 3 / 1.5 A à 220 V L/R = 1 ms DC-2 1 / 1.5 A à 220 V L/R = 1 ms DC-3 1 / 1.5 A à 220 V L/R = 1 ms DC-4 1 / 1.5 A à 220 V L/R = 1 ms DC-5 1 / 41.5 A à 400 V AC-23A / 48.2 A à 240 V AC-23A / 50.3 A à 230 V AC-23A / 1.2 A à 250 V L/R = 1 ms DC-2 1 / 1.2 A à 250 V L/R = 1 ms DC-3 1 / 1.2 A à 250 V L/R = 1 ms DC-4 1 / 1.2 A à 250 V L/R = 1 ms DC-5 1
  • Puissance assignée d'emploi en w : 11 kW à 230...240 V AC-3 / 15 kW à 230 V AC-23A / 15 kW à 240 V AC-23A / 22 kW à 400 V AC-23A / 22 kW à 415 V AC-23A / 22 kW à 500 V AC-3 / 22 kW à 690 V AC-23A / 30 kW à 500 V AC-23A / 18.5 kW à 400...415 V AC-3 / 18.5 kW à 690 V AC-3
  • Classe de service intermittent : 30
  • Pouvoir de coupure : 500 A à 400 V AC-21A / 500 A à 400 V AC-22A / 500 A à 400 V AC-23A
  • Pouvoir de fermeture : 630 A à 400 V (AC-21A / 630 A à 400 V (AC-22A / 630 A à 400 V (AC-23A
  • [icm] pouvoir assigné de fermeture en court-circuit : 2.1 kA à 400 V au Ipeak
  • [icw] courant assigné de courte durée admissible : 756 A à 400 V pendant 1 s
  • Courant nominal de court-circuit conditionnel : 10 kA à 400 V - fusible associé 63 A aM / 10 kA à 400 V - fusible associé 63 A gG
  • Durée de vie mécanique : 30000 cycle
  • Durée de vie électrique : 30000 cycle sur AC-21 / 30000 cycle sur DC-1...5
  • Mode de raccordement : Circuit de puissance : bornes à vis câble 16 mm² - rigidité du câble: souple - avec extrémité de câble / Circuit de puissance : bornes à vis câble 25 mm² - rigidité du câble: rigide
  • Couple de serrage : Circuit de puissance : 4 N.m - sur bornes à vis
  • Prévision de verrouillage : Oui
  • Hauteur : 83 mm
  • Largeur : 60 mm
  • Profondeur : 65 mm
  • Masse du produit : 0.5 kg
Référence : SCHV3 (Schneider-Electric)

Ancien produit : Telemecanique V3

Ils ont aussi acheté...

Schneider Electric

SCHKCF2PZ

Schneider Electric Commande Rotative Frontale Kcf pour V3, V4 Poignée Rouge

Non géré en stock
A commander

10.68 € HT 12.82 € TTC

Schneider Electric

SCHKZ81

Schneider Electric Contreplaque 60 X 60 Et 90 X 90 Mm pour Montage de Poignée sur Porte Jeu de 5

Offre limitée
1 produit(s) disponible(s)

16.01 € HT 19.21 € TTC

Schneider Electric

SCHVZ27

CACHE-BORNE UNI 80A

Non géré en stock
A commander

3.46 € HT 4.15 € TTC

Schneider Electric

SCHXALK178F

Harmony boite jaune 1 arrêt d'urgence rouge Ø40 tourner pour déverrouiller 2O

Rupture temporaire
A commander

33.18 € HT 39.82 € TTC

Schneider Electric

SCHXB4BS8444

Harmony arrêt d'urgence rouge Ø22- tête Ø 40 - tourner pour déverrouiller - 2O

En stock
21 produit(s) disponible(s)

13.25 € HT 15.90 € TTC

Schneider Electric

SCHZBE102

Harmony bloc contact pour bouton - ZBE Ø22 - 1O

En stock
189 produit(s) disponible(s)

2.42 € HT 2.90 € TTC

Les avis clients

Caractéristiques techniques

Puissance de fonctionnement nominale, ac-3, 400 v 18,5 kW
Courant permanent nominal (iu) 63,0 A
Nombre de pôles 3,0
Intensité de court-circuit nominale conditionnelle iq 10,0 kA
Classe de protection (ip), face avant Ip20
Verrouillable Non
Commande motorisée intégrée Non
Type de raccordement du circuit principal Raccordement à vis
Finition interrupteur de dispositif d'arrêt d'urgence Non
Finition de l'élément d'actionnement Sans
Finition interrupteur général Non
Finition interrupteur de sécurité Non
Finition interrupteur de maintenance/réparation Non
Puissance de fonctionnement nominale, ac-23, 400 v 15,0 kW
Courant nominal de courte durée admissible icw 0,756 kA
Convient pour montage au sol Non
Adapté à une fixation frontale à 4 trous Oui
Adapté à une fixation frontale centrale Oui
Adapté à un montage en distributeur Non
Adapté à un montage intermédiaire Non
Tension de fonctionnement nominale max. ue en ca 690,0 V
Commande motorisée en option Non
Déclencheur voltmétrique en option Non
Type de construction de l'appareil Technique d'encastrement fixe pour appareil encastré
Courant permanent nominal, ac-21, 400 v 63,0 A
Finition de l'inverseur Non
Nombre de contacts auxiliaires à fermeture 0,0
Nombre de contacts auxiliaires à ouverture 0,0
Tension de fonctionnement normale 690,0 V
Nombre de contacts auxiliaires à deux directions 0,0
Nombre d'interrupteurs 1,0
Courant permanent nominal, ac-23, 400 v 41,5 A
